Image to that needs no cleanup.
Single lines. Real arcs and circles. True scale from one dimension you give it.
Scanned blueprints and PDFs
Upload a scanned sheet, a TIFF or a PDF and every stroke is traced down its centre. Door swings, stair treads, dimension lines and the title block all come through as they were drawn.
ExperimentalDWG coming soon- 8,489
- entities from one sheet
- 50 MB
- PDF and TIFF accepted
- Optional
- lettering read as CAD text

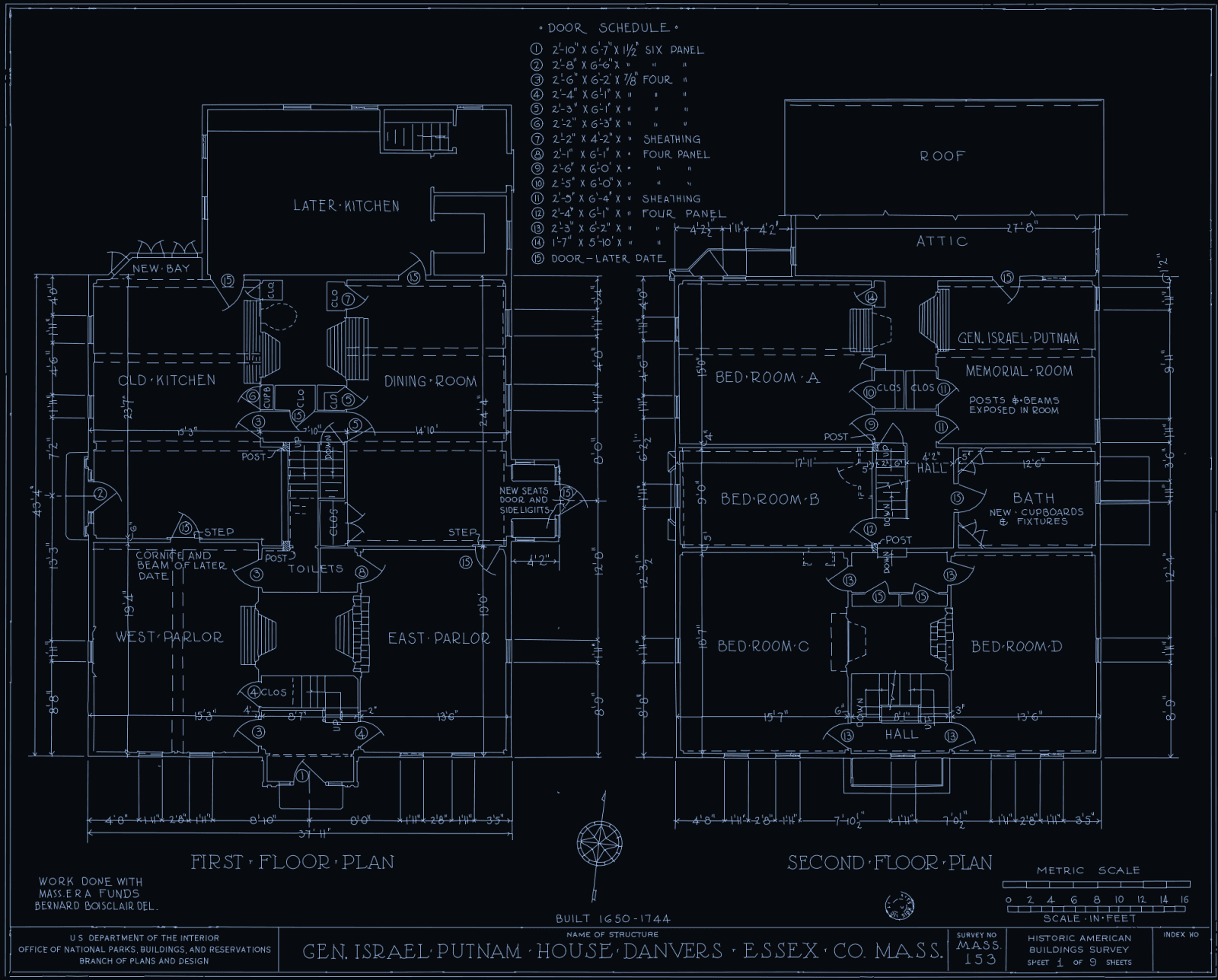

Gen. Israel Putnam House, Danvers, Massachusetts. Historic American Buildings Survey, public domain. Converted with no tuning, lettering traced as drawn. Turn text reading on to get labels as editable CAD text instead. No layer splitting yet: linework comes back on one layer. Blueprint to CAD
Cleaner geometry, by design
No Double Lines
Centerline tracing. A line comes out as one line, not two edges around a gap.
True Scale
Give one known dimension. The file imports at real size.
Opens Anywhere
Standard DXF. Fusion, SolidWorks, Onshape, FreeCAD, LightBurn, any CNC.
Pricing.sys
Simple, fair pricing
No subscription. Pay only when you need more than the free conversions.
Free
Try any tool. No account, no card.
- 3 conversions per tool
- Full-resolution preview
- Every output format
- No watermark
Pay per file
For when you need one more.
- One download, one payment
- No subscription
- Works in any CAD package
- Refunded if the file is wrong
Frequently asked questions
Everything you need to know about BEVELL.
Browser-based CAD conversion. You upload something you already have, a photo, a sketch, a scan or a PDF drawing, and get back a clean, editable CAD file at real-world scale. Nothing to install and no CAD licence needed to use it.
Photos of parts, hand sketches, scanned drawings and PDF plans go in; standard DXF and true-scale SVG come out. Because the output is standard rather than proprietary, it opens in Fusion 360, SolidWorks, AutoCAD, Onshape, FreeCAD, Rhino and any CNC or laser software that reads DXF.
Yes, once you set the scale. You give one reference dimension from the original and every curve is scaled to match, so the file imports at true size instead of needing to be rescaled by hand afterwards.
Converting is free and unlimited, so retuning a result costs nothing. Downloads are what you pay for: three free when you sign up, then £1.99 per file, one-off rather than a subscription.
Your file is uploaded to our server to be converted and deleted within 24 hours. AI redraw mode also sends the image to OpenAI to generate the line drawing; the other two modes involve no third party at all.
Scan to CAD: point cloud or mesh in, editable parametric solid out as a STEP file, reconstructing sketch geometry and depths rather than producing a dumb mesh. In development now.
